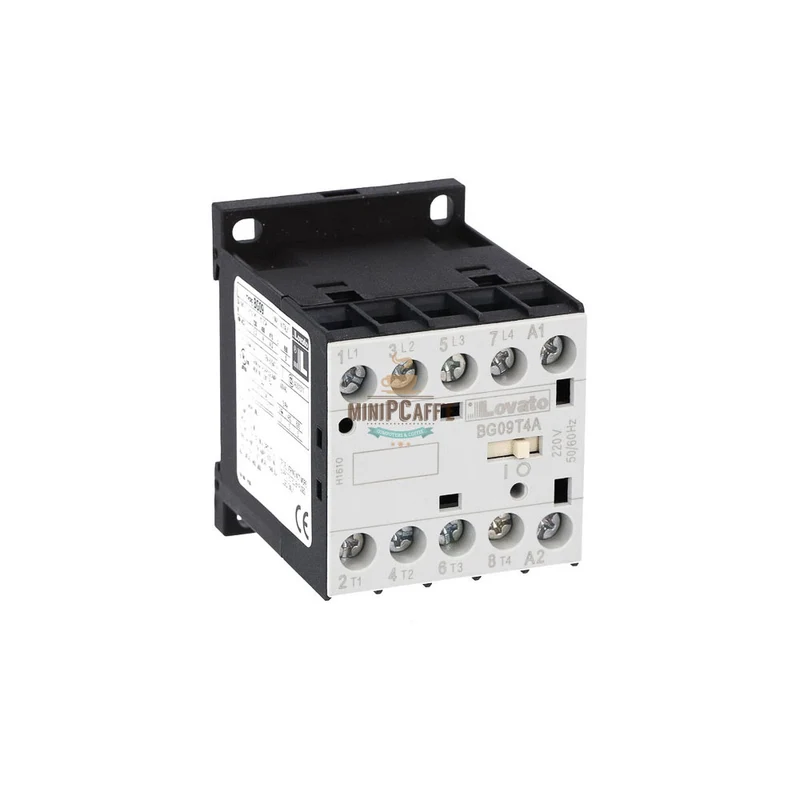

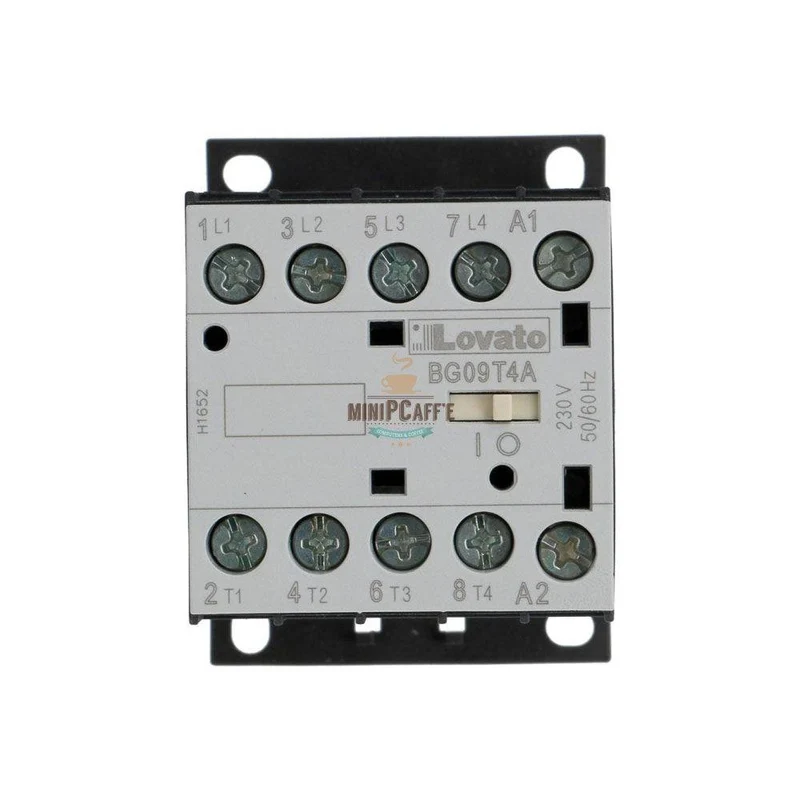

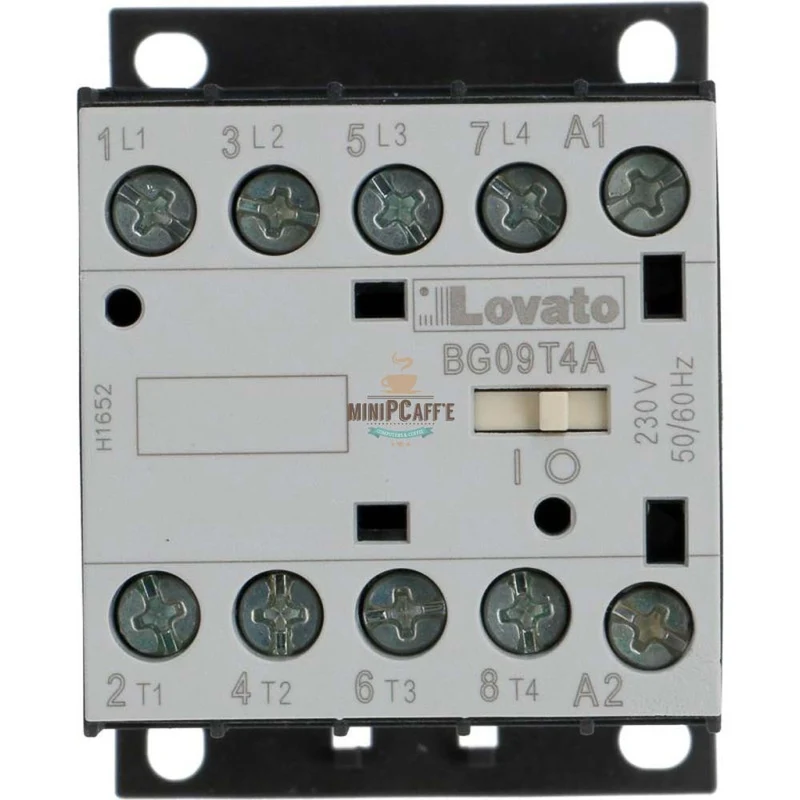

Lovato BG09T4A Contactor for Dalla Corte Espresso Machines

Lovato BG09T4A Contactor for Dalla Corte Espresso Machines

The Lovato BG09T4A is a 4-pole mini contactor designed for reliable electrical switching and control in compatible Dalla Corte commercial espresso machines. Manufactured by Lovato Electric for Dalla Corte, this contactor features 4 normally open (NO) contacts, a 9 A AC-3 operational current rating, and a 4 kW power rating at 400 V.

With a 230 V AC coil operating at 50/60 Hz, the BG09T4A provides dependable switching performance for espresso machine electrical systems. Its compact BG09 series design supports screw mounting or installation on a standard 35 mm DIN rail, making it suitable for service and replacement applications.

Key Features

• Made by Lovato for Dalla Corte
• 4-pole NO configuration
• 9 A AC-3 current
• 4 kW power rating
• 230 V AC coil
• Made in Italy

Reliable Electrical Switching

The Lovato BG09T4A contactor is designed for dependable switching of electrical loads in commercial espresso machines and other compatible equipment. Its 9 A AC-3 rating and 4 kW power rating at 400 V make it suitable for demanding electrical control applications.

Designed for Dalla Corte

This Lovato Electric contactor is used in selected Dalla Corte espresso machine models, including DC-PRO, DC-PRO-XT, and EVO-2. It is a suitable replacement component for machines using the specified BG09 contactor configuration.

Compact 4-Pole Design

The BG09 series is a compact 4-pole mini contactor with four normally open contacts. Its space-saving design is well suited to electrical control panels where reliable switching is required without taking up unnecessary space.

Easy Installation

The BG09T4A supports screw mounting and 35 mm DIN rail mounting, providing flexible installation options for compatible electrical panels and equipment. The 230 V AC coil operates at both 50 Hz and 60 Hz.

Specifications

• Manufacturer: Lovato Electric for Dalla Corte
• Model: BG09T4A
• Series: BG09
• Type: Mini contactor
• Pole Count: 4 poles
• Contact Type: 4 NO
• AC-3 Current: 9 A
• AC-1 Current: 20 A
• Power Rating: 4 kW
• Rated Voltage: 400 V
• Coil Voltage: 230 V AC
• Coil Frequency: 50/60 Hz
• Mounting: Screw or DIN
• DIN Rail: 35 mm
• Origin: Made in Italy

Compatible Models

• Dalla Corte DC-PRO (201704-REV.23)
• Dalla Corte DC-PRO (201809-REV.27)
• Dalla Corte DC-PRO-XT (201807-REV.00)
• Dalla Corte EVO-2 (201612-REV.16)
• Dalla Corte EVO-2 (201809-REV.18)

What's Included

• 1 x Lovato BG09T4A Contactor
