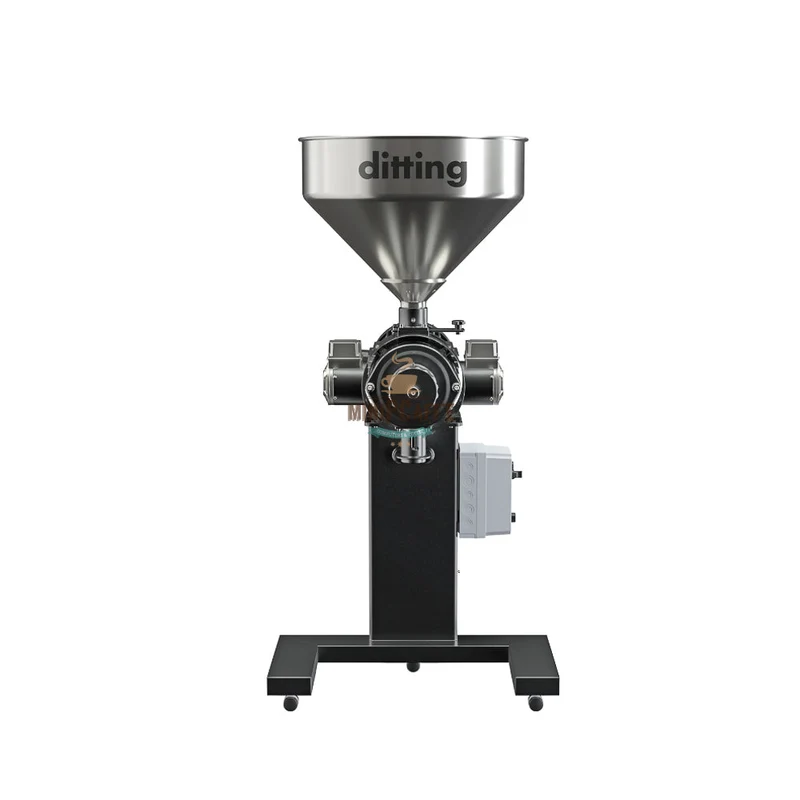

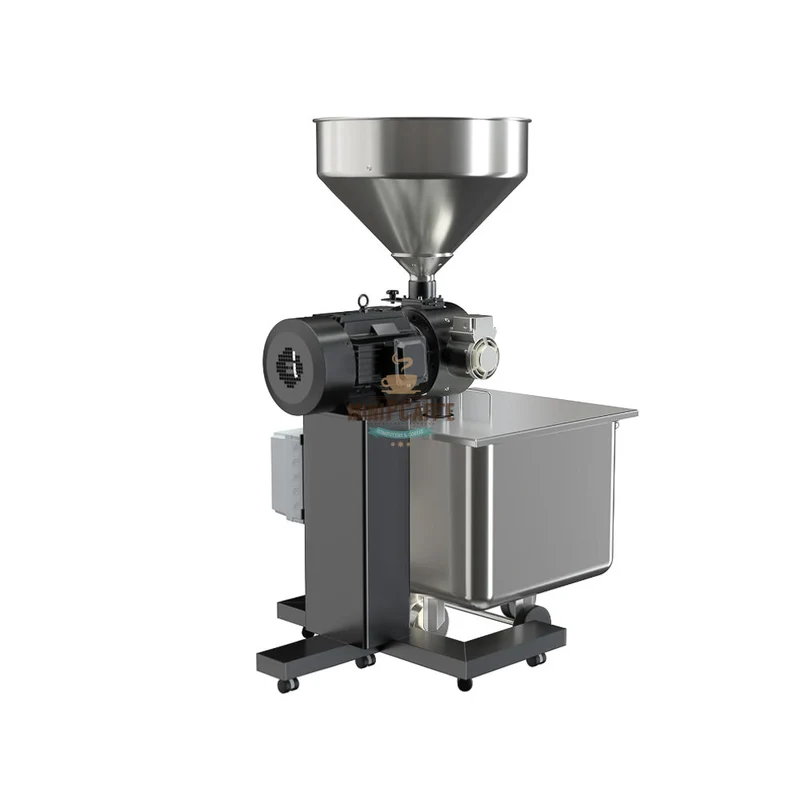

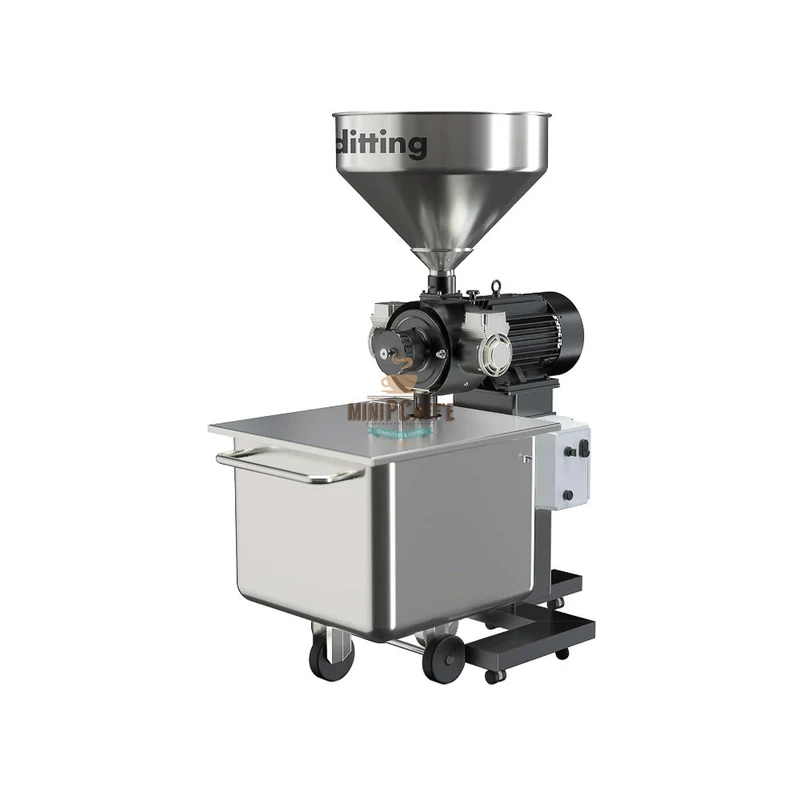

Ditting 1827 High Volume S Industrial Coffee Grinder

Ditting 1827 High Volume S Industrial Coffee Grinder

The Ditting 1827 High Volume S Industrial Coffee Grinder is a heavy-duty commercial coffee grinder designed for coffee roasteries, coffee manufacturers, food service suppliers, and other large-scale coffee production environments. Equipped with 180 mm flat burrs made from fully hardened special steel, this industrial grinder is built to deliver consistent grinding performance at high production volumes.

With a powerful 5,500 W three-phase motor, stepless grind adjustment, 30 kg bean hopper, and durable steel and stainless steel construction, the Ditting 1827 High Volume S is designed for continuous professional operation. Its special steel burrs provide an excellent balance of grinding capacity, durability, and consistent particle size for medium and espresso coffee grinding.

Key Features

• 180 mm Flat Burrs
• 5500 W Powerful Motor
• Stepless Grind Adjustment
• 30 kg Bean Hopper
• Industrial Duty Design
• Best for Medium & espresso grinding

High Volume Grinding

The Ditting 1827 High Volume is designed for businesses that need to grind large quantities of coffee efficiently and consistently. It is suitable for coffee roasters, production facilities, retail coffee packaging, and food service suppliers where reliable high-volume grinding is essential.

The 30 kg steel bean hopper supports large production runs, reducing the need for frequent refilling. Its 5,500 W three-phase motor provides the power needed for demanding continuous operation, while the direct drive system transfers power efficiently to the grinding mechanism.

Fully Hardened Special Steel Burrs

This version of the Ditting 1827 is equipped with 180 mm flat burrs made from fully hardened special steel (S). These burrs are designed for reliable commercial grinding and provide an approximate service life of 25-45 tonnes of coffee, depending on use and operating conditions.

The S burr configuration offers an average grinding capacity of up to 300 kg/h for medium grinds and 280 kg/h for espresso, making it a strong choice for high-volume coffee production where both output and grind consistency are important.

Precise Stepless Adjustment

The Ditting 1827 High Volume S features stepless grind adjustment for precise control over the grind size. This allows operators to adjust the particle size according to the intended brewing application and maintain consistent results throughout production.

The 180 mm flat burr design supports uniform grinding, making this grinder suitable for producing pre-ground coffee for espresso and medium grind applications.

Powerful Industrial Construction

A 5,500 W three-phase motor with high starting torque is designed to handle demanding production conditions. Surface cooling helps support reliable operation during extended grinding sessions.

The durable steel and stainless steel housing provides a strong structure for professional environments. With a total weight of approximately 240 kg including the base, the Ditting 1827 High Volume is built for stable, heavy-duty industrial use.

Ditting 1827 Burr Materials Guide

The Ditting 1827 is available with three burr options, each designed for different grinding needs and production levels.

Special Steel (S)

• Material: Hardened special steel
• Burr Life: 25-45 tones
• Capacity: 300 kg/h medium, 280 kg/h espresso
• Best For: Medium & espresso

Turkish Fine Steel (ST)

• Material: Special steel
• Burr Life: 25-45 tones
• Capacity: 180 kg/h Turkish fine
• Best For: Turkish coffee

Tungsten Carbide (HM)

• Material: Hard metal tungsten carbide
• Burr Life: 250-450 tones
• Capacity: 280 kg/h medium, 260 kg/h espresso
• Best For: High-volume grinding

Specifications

• Manufacturer: Ditting
• Model: 1827 High Volume S
• Grinder Type: Industrial Coffee Grinder
• Burr Type: 180 mm Flat
• Burr Material: Hardened Special Steel
• Burr Application: Medium and espresso grinding
• Hopper Capacity: 30 kg
• Grind Adjustment: Stepless
• Motor Power: 5500 W
• Motor Type: Three Phase
• Voltage: 200-208V // 60 Hz | 380-415V // 50/60 Hz
• Drive System: Direct Drive
• Speed: 1450 RPM
• Control: On/Off Function
• Housing: Steel/Stainless Steel
• Bean Hopper: Steel
• Weight: 240 kg
• Width: 79 cm
• Depth: 123 cm
• Height: 160 cm
• Medium Capacity: 300 kg/h
• Espresso Capacity: 280 kg/h
• Burr Life: 25-45 Tones
