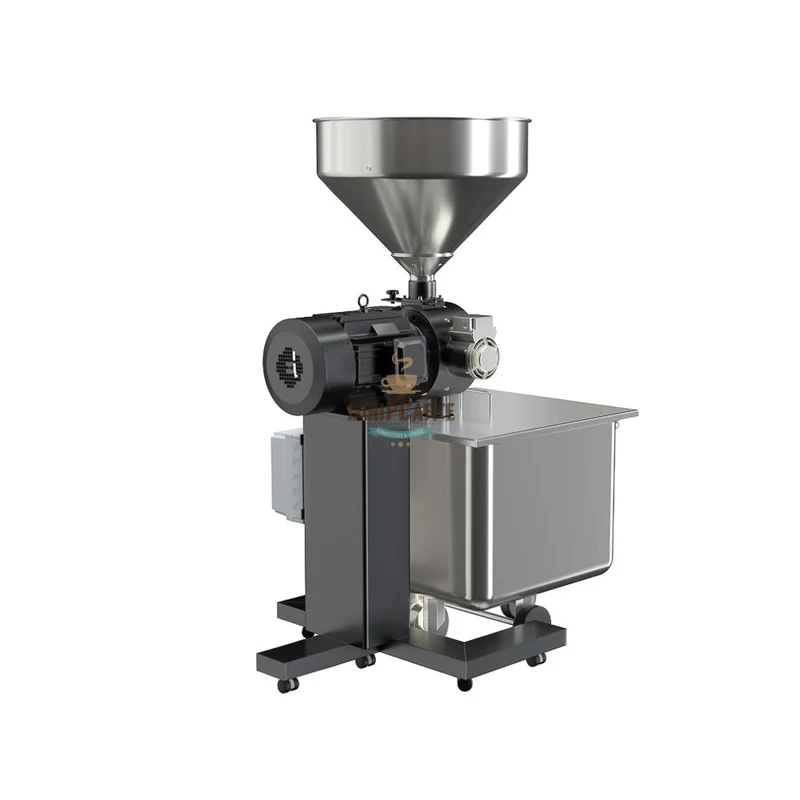

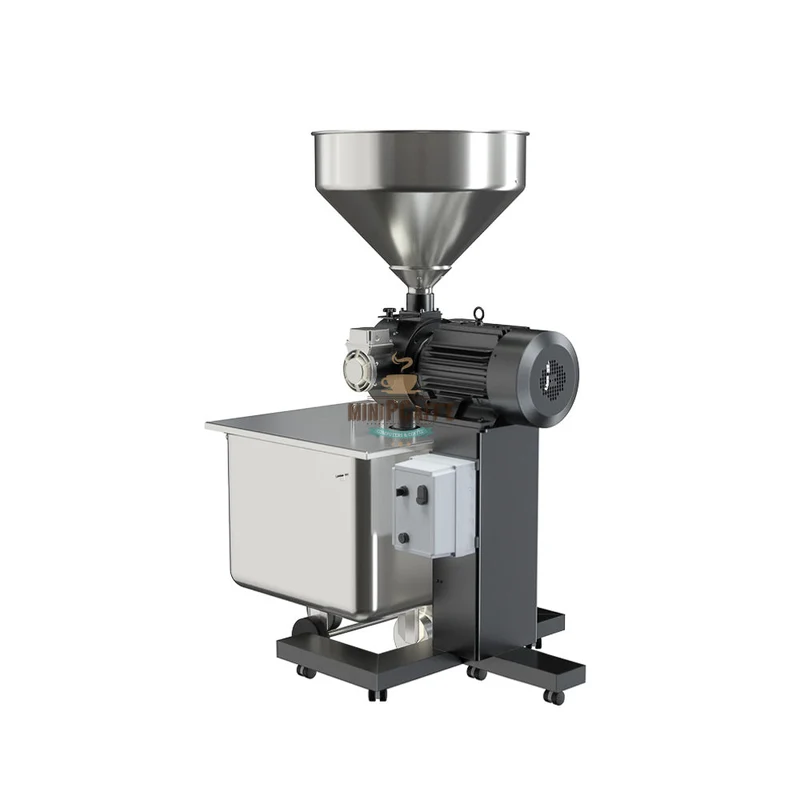

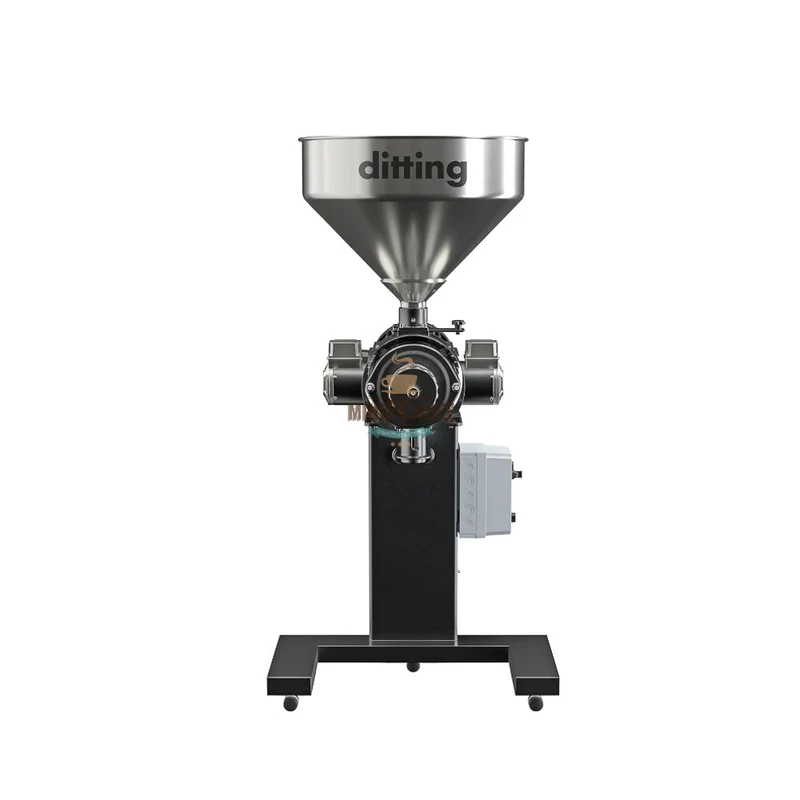

Ditting 1827 High Volume HM Industrial Coffee Grinder

Ditting 1827 High Volume HM Industrial Coffee Grinder

The Ditting 1827 High Volume HM Industrial Coffee Grinder is a heavy-duty commercial coffee grinder designed for roasteries, coffee manufacturers, food service suppliers, and large-scale coffee production. Built for continuous operation, it can grind up to 280 kg of coffee per hour for espresso and up to 280 kg/h for medium grinds with the HM burr configuration, providing consistent grinding performance for high-volume production.

With its large 180 mm flat burrs, powerful 5,500 W three-phase motor, stepless grind adjustment, and 30 kg bean hopper, the Ditting 1827 High Volume is designed to deliver reliable and repeatable results throughout demanding production environments. Its hard metal tungsten carbide burrs also provide a significantly longer service life than standard steel burrs, making this grinder a strong choice for professional coffee operations that require durability and high output.

Key Features

• 180 mm Flat Burrs
• 5500 W Powerful Motor
• Stepless Grind Adjustment
• 30 kg Bean Hopper
• Heavy Duty Construction
• Made for High Volume Medium & Espresso

High Volume Coffee Grinding

The Ditting 1827 High Volume is built for industrial coffee grinding rather than countertop or small commercial use. Its high-capacity design allows large quantities of coffee beans to be processed continuously, making it suitable for coffee roasteries, production facilities, retail coffee packaging, and food service supply operations.

The 30 kg steel bean hopper provides enough capacity for large production runs, while the powerful motor supports continuous grinding with high starting torque. The grinder operates at 1450 RPM and uses a direct drive system for efficient power transfer.

Long-Life HM Tungsten Carbide Burrs

This HM version is equipped with 180 mm flat burrs made from hard metal tungsten carbide. The burrs are designed for exceptional durability, with an approximate grinding life of 250 to 450 tonnes of coffee before replacement under suitable operating conditions.

The hard metal burr construction provides a much longer service life than standard fully hardened special steel burrs. This makes the Ditting 1827 HM particularly well suited to businesses that grind large quantities of coffee every day and need to reduce burr replacement and maintenance frequency.

Precise Stepless Grind Adjustment

The Ditting 1827 High Volume features stepless grind adjustment, allowing operators to precisely control the particle size according to the required coffee application. This provides greater control when producing coffee for espresso, filter, or other commercial brewing methods.

The precise adjustment system helps maintain consistent grind quality throughout production, which is especially important for coffee manufacturers and roasters supplying pre-ground coffee in large quantities.

Powerful Industrial Motor

A 5,500 W three-phase motor provides the power needed for continuous industrial coffee grinding. The motor uses surface cooling and high starting torque to support demanding production environments and consistent operation during extended grinding cycles.

The steel and stainless steel housing provides a strong and durable structure suitable for professional coffee production facilities. With a net weight of approximately 240 kg including the base, the Ditting 1827 is built as a stable industrial coffee grinder for high-volume use.

Ditting 1827 Burr Materials Guide

The Ditting 1827 is available with three burr options, each designed for different grinding needs and production levels.

Special Steel (S)

• Material: Hardened special steel
• Burr Life: 25-45 tones
• Capacity: 300 kg/h medium, 280 kg/h espresso
• Best For: Medium & espresso

Turkish Fine Steel (ST)

• Material: Special steel
• Burr Life: 25-45 tones
• Capacity: 180 kg/h Turkish fine
• Best For: Turkish coffee

Tungsten Carbide (HM)

• Material: Hard metal tungsten carbide
• Burr Life: 250-450 tones
• Capacity: 280 kg/h medium, 260 kg/h espresso
• Best For: High-volume grinding

Specifications

• Manufacturer: Ditting
• Model: 1827 High Volume HM
• Grinder Type: Industrial Coffee Grinder
• Burr Type: 180mm Flat
• Burr Material: Tungsten Carbide HM
• Burr Application: High Volume Medium & Espresso grinding
• Hopper Capacity: 30 kg
• Grind Adjustment: Stepless
• Motor Power: 5500W
• Motor Type: Three Phase
• Voltage: 200-208V // 60 Hz | 380-415V // 50/60 Hz
• Drive System: Direct Drive
• Speed: 1450 RPM
• Control: On/Off Function
• Housing: Steel/Stainless Steel
• Bean Hopper: Steel
• Medium Capacity: 280 kg/h
• Espresso Capacity: 260 kg/h
• Burr Life: 250-450 Tones
• Weight: 240 kg
• Width: 79 cm
• Depth: 123 cm
• Height: 160 cm
